1. Product Introduction
1.1 Product Description

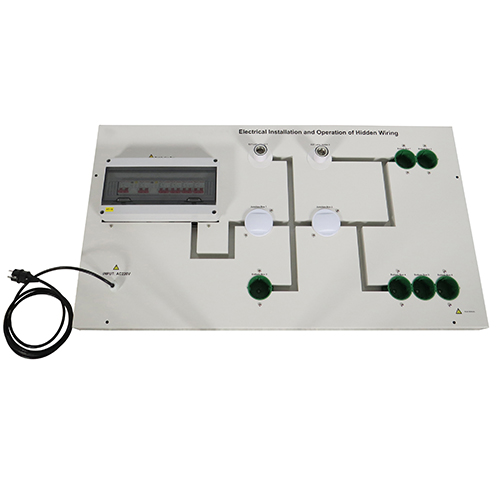

This is a professional-grade concealed electrical wiring system designed for concealed circuit laying in buildings. The system adopts a modular structure and supports safe operation in a 220V standard voltage environment. It is suitable for high-standard electrical projects such as residential and commercial places that require hidden lines, ensuring the unity of power safety and space aesthetics.
1.2 Product Features
The lines and interfaces are completely embedded in the wall/structural layer, eliminating the clutter of exposed cables and improving the neatness of the space.
It meets safety standards and has a built-in overload protection mechanism to reduce the risk of short circuits and leakage.
The conduit and junction box are made of flame-retardant insulating materials (presumably PC/ABS alloy), which are corrosion-resistant and anti-aging.
Inspection ports are reserved at key nodes, and troubleshooting does not require destroying the structure.
2. Technical specifications
2.1 Basic technical parameters
|
Working power supply
|
Single-phase three-wire AC 220V/50Hz
|
2.2 Equipment appearance parameters
|
Dimension
|
1280mm*730mm*400mm
|
|
Weight
|
39kg
|
3. Product introduction
3.1 Main part of the product
|
Number
|
Name
|
Quantity
|
|
1
|
Power plug
|
1
|
|
2
|
Distribution box
|
1
|
|
3
|
Recessed lamp socket
|
2
|
|
4
|
European bottom box
|
6
|
|
5
|
Junction box
|
2
|
4. Product teaching experiment list
(1) Installation and operation training of single-control lighting circuit
